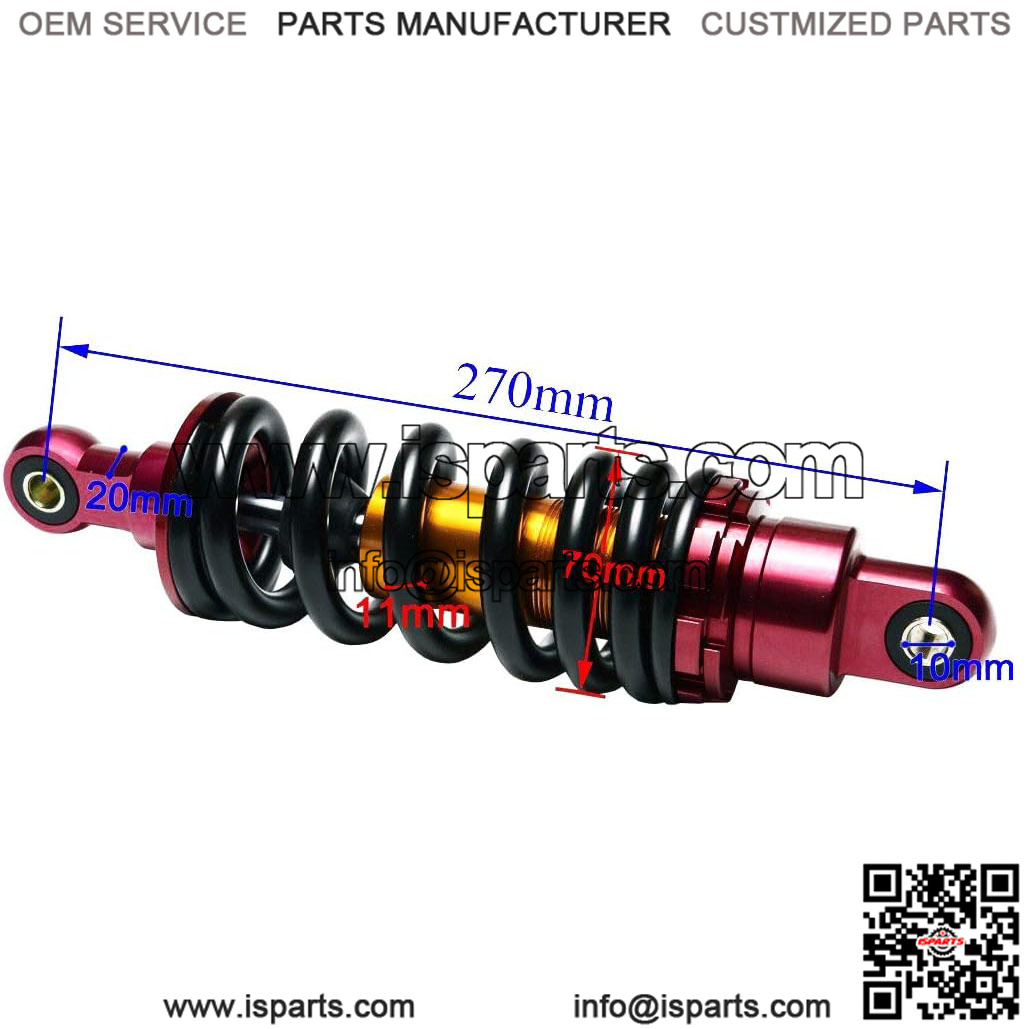

10.6″270mm Rear Shock Spring Absorber Suspension Dirt Pit Bike ATV Quad 800LBSThis shock absorbers fit most Chinese 50cc 70cc 110cc 125cc 140cc 160cc Pit bike Dirt Bike Gokart Moped Quad and Scooter.
290mm (12″) total length
270mm (10.6″) Length of eye to eye.
Eye Diameter (Bushing):10mm (0.4″)
Eye thickness : 2.00mm (0.8″)
Spring thickness: 11mm (0.43″)
Spring Width: 70mm (2.76″)
The eye of shock has tensile strength more than 2,000 Kgf
Spring Weight : 240kgPackage Included :1 pc
