This Trailer Tow Hitch + 4-FlatFits The Following Vehicles:
2011 – 2014 GMC Sierra 3500 HD 8′ bed except factory hitch Tommy Gate lift or cab & chassis

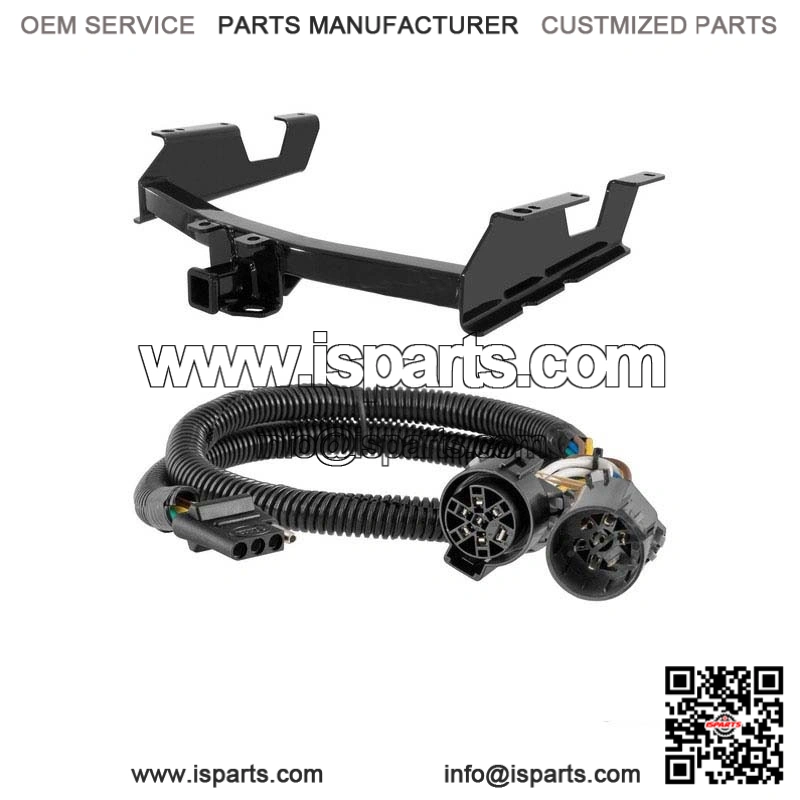

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
Class 4 Hitch, 2″ Receiver (Easy Bolt-On, No Drilling)
Replacement OE 4-Way Flat Socket (T’s into USCAR)
Installation instructions, schematics, diagrams, and hardware (if required).
List ofFitment Years:
2011, 2012, 2013, 2014
14061 Class 4 Trailer Hitch, 2-Inch Receiver
Whatever the next item is on your to-do list — whether it’s arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset — class 4 trailer hitches offer greater towing power to let you Bring It These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a customFit for your vehicle Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans.
This particular class 4 hitchFits certain years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (to verify vehicle compatibility, see application info) It provides a weight carrying capacity of 10,000 lbs GTW and 1,000 lbs.
TW It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs and a WDTW of 1,200 lbs.
class 4 tow hitches are as much suited for work as they are for play With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component) All class 4 receiver hitches come with a 2″ receiver tube opening and all the necessary hardware for a complete installation.
From light-duty to heavy-duty, every custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on To prove it, we test all our hitches in accordance with SAE J684 for safety..
Features:
Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
Engineered with a vehicle-specific design for a customFit
Tested for safety in accordance with SAE J684
Precisely welded for superior strength andFit
Protected by a durable high-gloss black powder coat finish
Co-cured in a rust-resistant liquid A-coat, inside and out
Equipped with an open-back receiver for easy cleaning
55384 Replacement Vehicle-Side Custom USCAR 4-Pin Trailer Wiring Harness
Stress is the last thing you should feel when towing a trailer — whether you’re hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it custom wiring connectors are the easiest way to outfit your vehicle with a trailer wiring connection.
They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring Though this special socket is not equipped on every vehicle, a custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation.
Rather than requiring you to cut, splice and solder into your vehicle’s wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard vehicle-to-trailer wiring connection, typically in the form a 4-way flat All custom wiring connectors are made vehicle-specific for the easiest possible installation and the bestFit This particular connector provides a 4-way flat socket while retaining use of the existing OEM socket.
It is designed to be a custom wiring option for a variety of vehicles (see application info to verifyFitment with your vehicle) It comes with a dust cover to keep the connector socket clean when not in use..
Features:
Replacement OE 4-Way Flat Socket (T’s into USCAR)
Plugs into USCAR connection to add 4-way flat and retain use of existing socket
Simple plug-and-play design eliminates the need for cutting or splicing
4-way flat output connects tail lights, brake lights and turn signals
Dust cover included to keep connector clean when not in use
Slit loom keeps wires contained and well protected
