Features:
Aircraft-Grade Aluminum Construction: Made from high-quality aircraft-grade aluminum with a raw aluminum finish for a prolonged lifespan.
Brazed Core Technology: Ensures optimum performance and reliability.
Durable Tanks and Fittings: Features 2mm thick all-aluminum tanks and fittings for enhanced durability.
CNC Machined Fill Neck: Rugged and durable billet aluminum CNC machined fill neck.
Ergonomic Design: CNC machined cap with engraved craftsmanship and anodized treatment for a premium finish.
OE-Style Brass Petcock Drain: Superior to plastic alternatives, ensuring long-lasting performance.
Fan Specifications:
Diameter: 12″ (blade to blade)
Voltage: DC 12 Volts
Wattage: 80W
Thickness: 2.5″
Number of Blades: 10 S-Type blades
Maximum CFM (Cubic Feet per Minute): 2150 CFM
Maximum RPM (Revolutions per Minute): 2000 ( 10%)
Blade Design: S-Type pull-push design for efficient airflow and enhanced cooling.
Motor: Powerful 80-watt motor to keep your engine cool.
Thermostat Kit:
Universal Fit: Compatible with any automotive vehicle and electric fan.
Activation: Grounds electric fans at preset temperatures.
Turn-On Temperature: 185 F
Turn-Off Temperature: 165 F
Probe: Includes a 3/8″ NPT thread-in brass probe, typically installed in the radiator, water outlet, or manifold.
Thermostat Relay Kit Wiring Instructions:
RED (+): Connect directly to the battery.
WHITE: Connect to the ignition switch power source.
BLACK: Connect to the thermos switch.
BLUE: Connect to the fans.
Radiator Specifications:
Row Count: 4 Rows
Core Size: 18-3/8″ H x 27-1/2″ L
Overall Size: 22-1/2″ H x 37-1/4″ L
Upper Inlet: 1-3/4″
Lower Outlet: 1-3/4″
Transmission Cooler:
Size: 38 x 305 x 1/4-18 NPT
Applications:
Ford F-Series:
F150, F250, F350 V8 Engines (1983 C1997)
Ford Radiator (1985 C1996):
5.0L & 5.8L V8 Engines
Ford F150 Truck Radiator (1985 C1996):
5.0L & 5.8L V8 Engines
Ford F250 Truck Radiator (1985 C1997):
5.0L, 5.8L, & 7.5L V8 Engines
Ford F350 Truck Radiator (1985 C1997):
5.0L, 5.8L, & 7.5L V8 Engines
Manufacturer Part Numbers:
1451, DPI1451, SBR1451, CC1451, EC1451, AE1451, MC1451, KKS1451

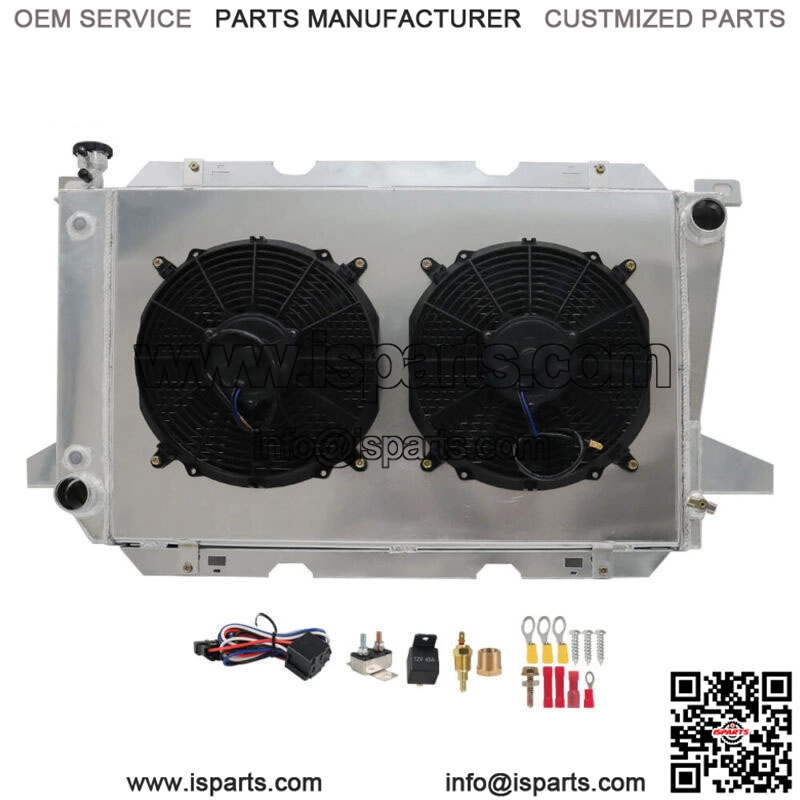

Package Includes:
1 x 4-Row Aluminum Radiator
1 x CNC Machined Radiator Cap
1 x Aluminum Shroud
2 x 12″ Fans (includes mounting kits)
1 x Thermostat Relay Kit
