Premium Quality Replacement Part
Engine Intake & Exhaust Valve Kit with Gaskets
Compatible with Arctic Cat Models:
Jaguar Z1 Early Build 2007
Jaguar Z1 Sno Pro 2008
TZ1 Touring Lxr Turbo Lxr 2008-2014
Z1 1100 2009-2011
Bearcat Z1 XT 2009-2011
Bearcat 5000 XT 2015
Procross F1100 2012-2013
Proclimb XF1100 Turbo Sno Pro High Country 2012-2013
Procross XF1100 2012-2013
Proclimb M1100 2012-2013
M9000 2014-2016
XF 9000 2014-2016
ZR 5000 LXR 2014-2017
ZR 9000 2014-2016
Order Includes:
4 x Intake Valve: 3007-152
Length: 99mm – 3.89 in
Outer Diameter: 35.9mm – 1.41 in
Material: Stainless Steel
4 x Exhaust Valve: 3007-784, 3007-860
Length: 90mm – 3.54 in
Outer Diameter: 33mm – 1.29 in
Material: Stainless Steel

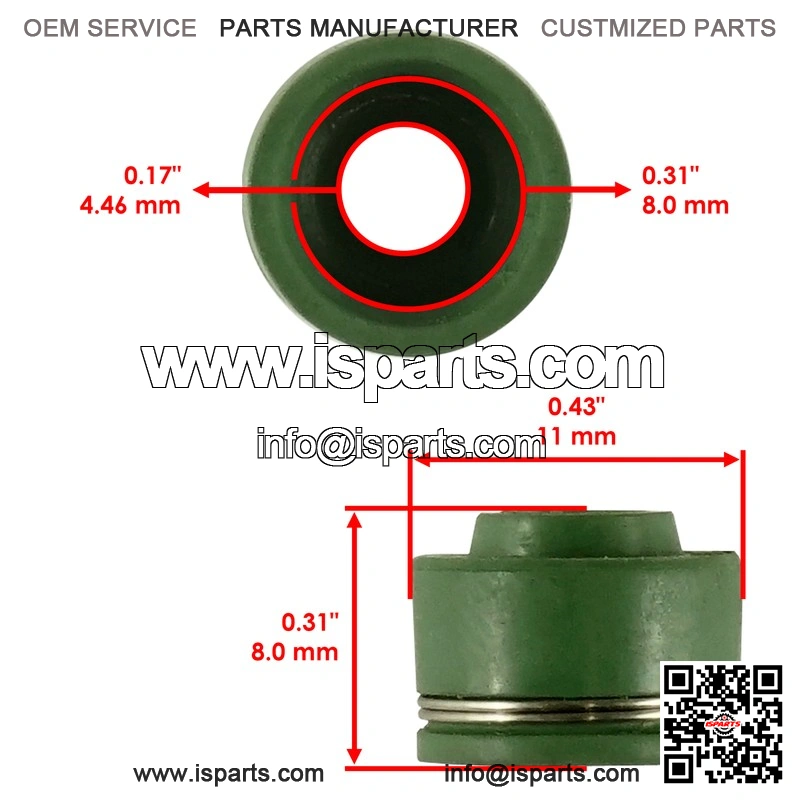

8 x Valve Stem Seal: 3402-226
Length: 11mm – 0.43 in
Width: 8mm – 0.31 in
Inner Diameter: 4.46mm – 0.17 in
Outer Diameter: 8mm – 0.31 in
Material: Plastic
8 x Valve Spring: 3007-625, 3007-154
Length: 47mm – 1.85 in
Outer Diameter: 22.6mm – 0.88 in
Thickness: 3.3mm – 0.13 in
Material: Steel
8 x Valve Tappet: 3402-851
Width: 19.5mm – 0.76 in
Inner Diameter: 26mm – 1 in
Outer Diameter: 28mm – 1.1 in
Material: Metal
8 (Set) x Valve Cotter: 0693-281, 3006-202
Length: 8 mm – 0.31 in
Height: 5.3 mm – 0.2 in
Width: 3.4 mm – 0.13 in
1 x Cylinder Head Gasket: 3007-072
Width: 149.1mm – 5.8 in
Length: 288.8mm – 11.3 in
Inner Diameter: 98.2mm – 3.8 in
1 x Cylinder Head Cover Gasket: 3007-077
Width: 197.5mm – 7.77 in
Length: 167.8mm – 6.6 in
