Cylinder Head Intake & Exhaust Valve Kit for Kawasaki Mule 2510 KAF620A 1994-98
Cylinder Head Intake & Exhaust Valve Kit for Kawasaki Mule 2510 KAF620A 1994-98
Cylinder Head Intake & Exhaust Valve Kit for Kawasaki Mule 2510 KAF620A 1994-98
Description
Premium Quality Replacement Part
Cylinder Head Rebuild Kit
Compatible with Kawasaki Models.
Mule 2500 KAF620-C 1994-1998
Mule 2510 KAF620-A 4X4 1994-1998
Mule 2520 Turf KAF620-B 1995-1998

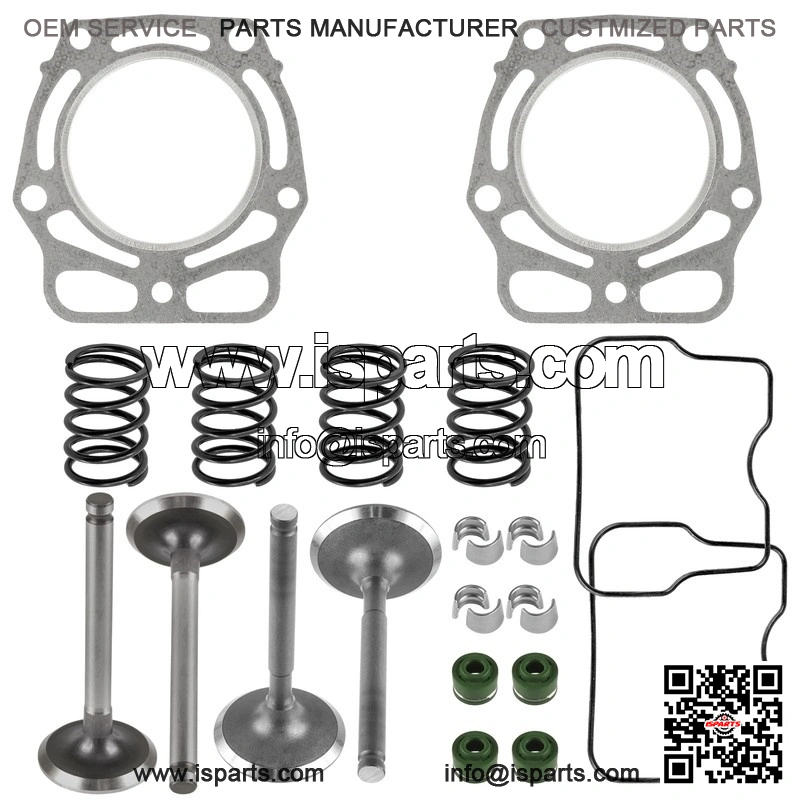

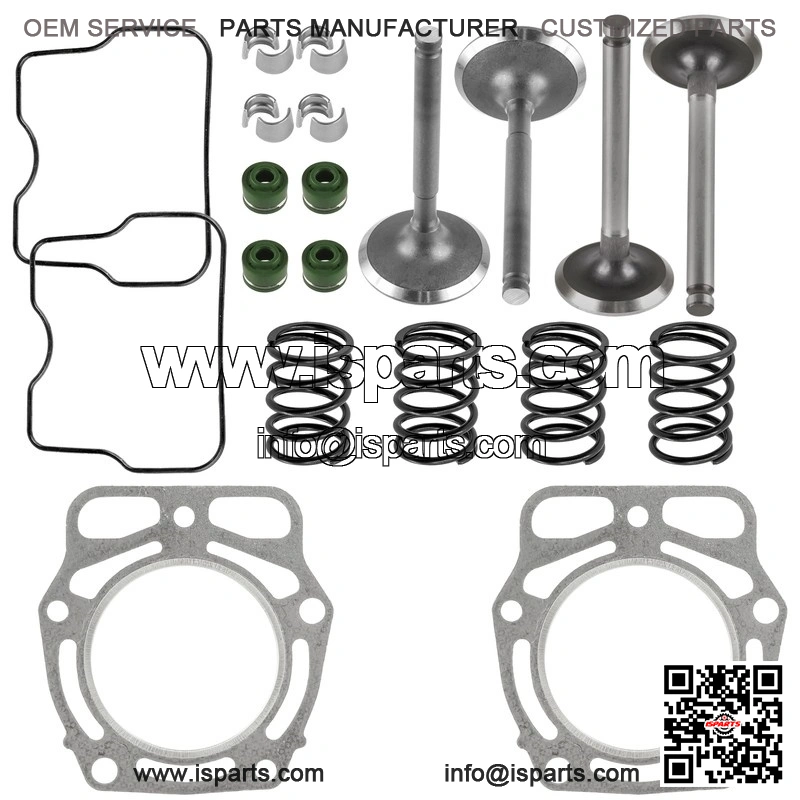

Order Includes:

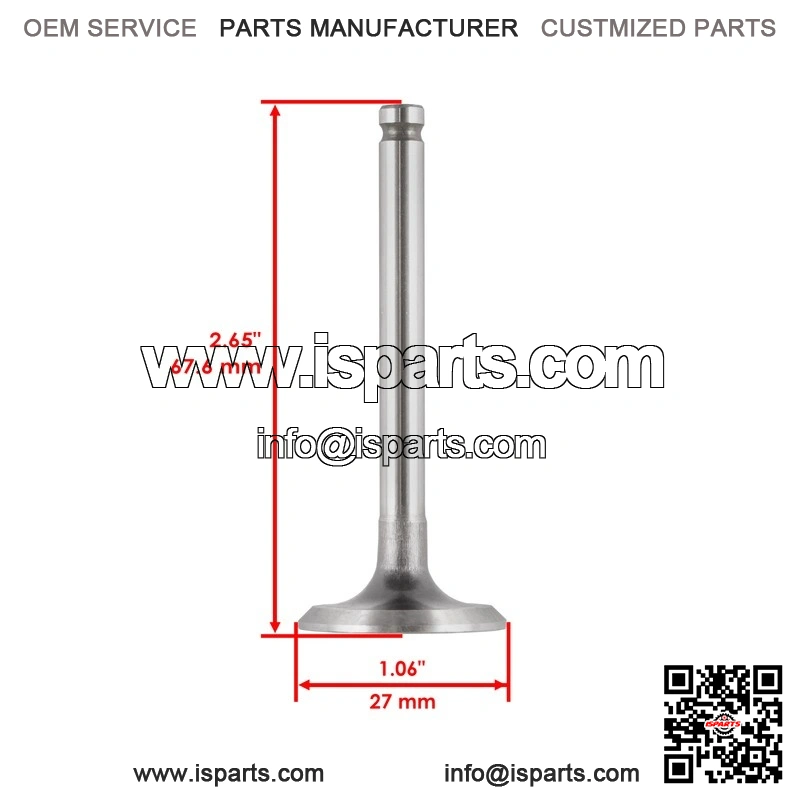

2 x Intake Valve: 12004-2115 12004-2104
Height: 67.6 mm – 2.65″
Head Diameter: 27 mm – 1.06″
Material: (53Cr21Mn9Ni4N special steel)

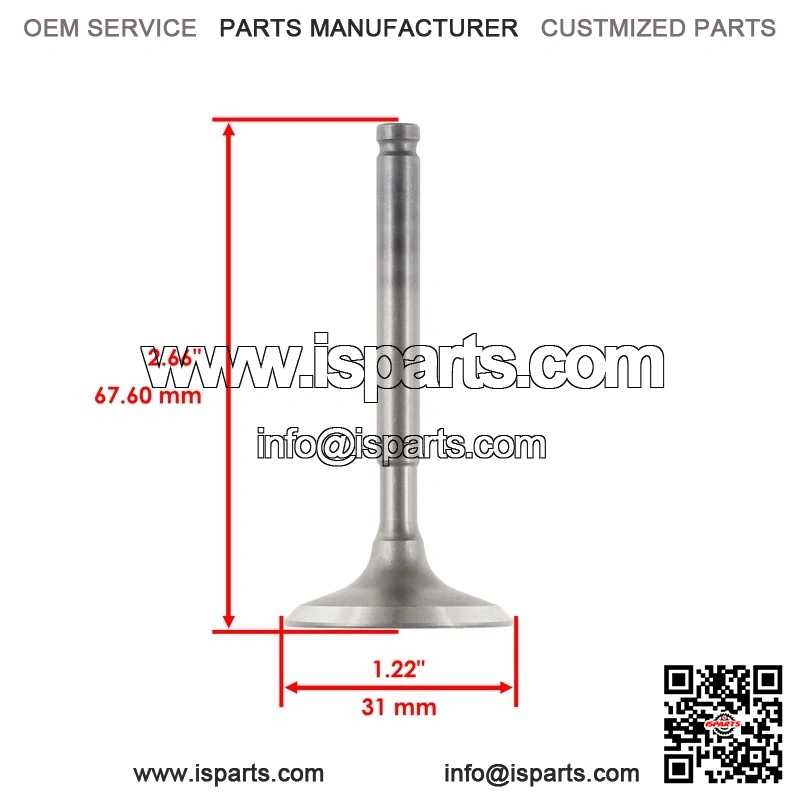

2 x Exhaust Valve: 12005-2093
Height: 67.6 mm – 2.65″
Head Diameter: 31 mm – 1.22″
Material: (53Cr21Mn9Ni4N special steel)

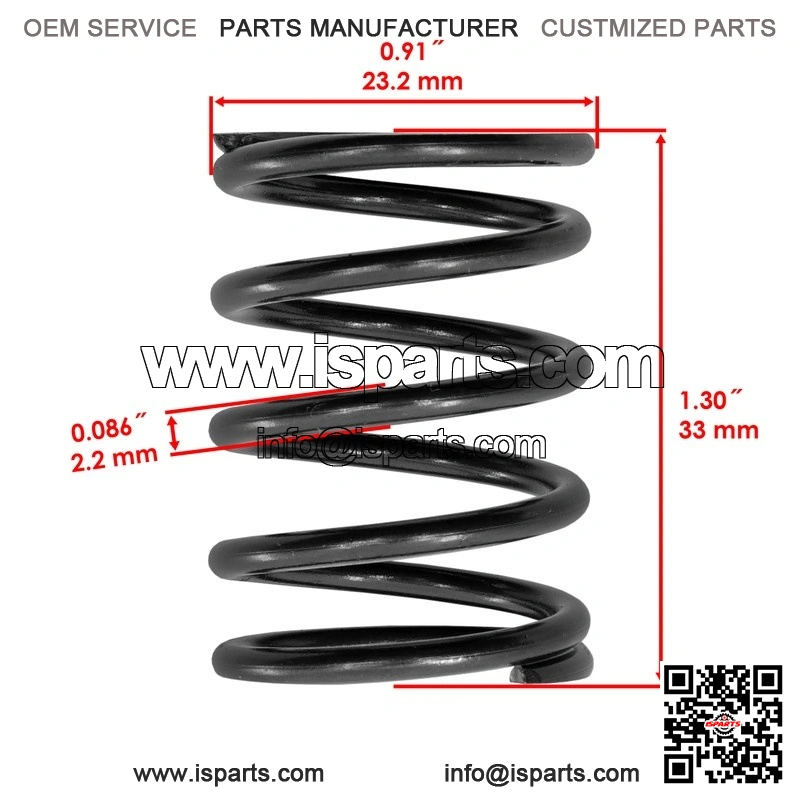

4 x Valve Spring: 49078-2083, 49078-2071
Height: 33 mm – 1.30″
Width: 23.2 mm – 0.91″
Item Thickness: 2.2 mm – 0.086″
8 x Valve Collet Keeper: 12011-2056
Height: 6.3 mm – 0.24″
Width: 8.5 mm – 0.33″
4 x Valve Stem Oil Seal: 92049-2109
Height: 8.2 mm – 0.32″
Outer Diameter: 10.7 mm – 0.42″
Inner Diameter: 4.7 mm – 0.18″
2 x Cylinder Head Gasket: 11004-2107
Length: 130 mm – 5.11″
Width: 123 mm – 4.84″
Inner Diameter: 77 mm – 3.03″
2 x Rocker Cover Gasket: 11061-2182 11060-2332
