APPLICATION:

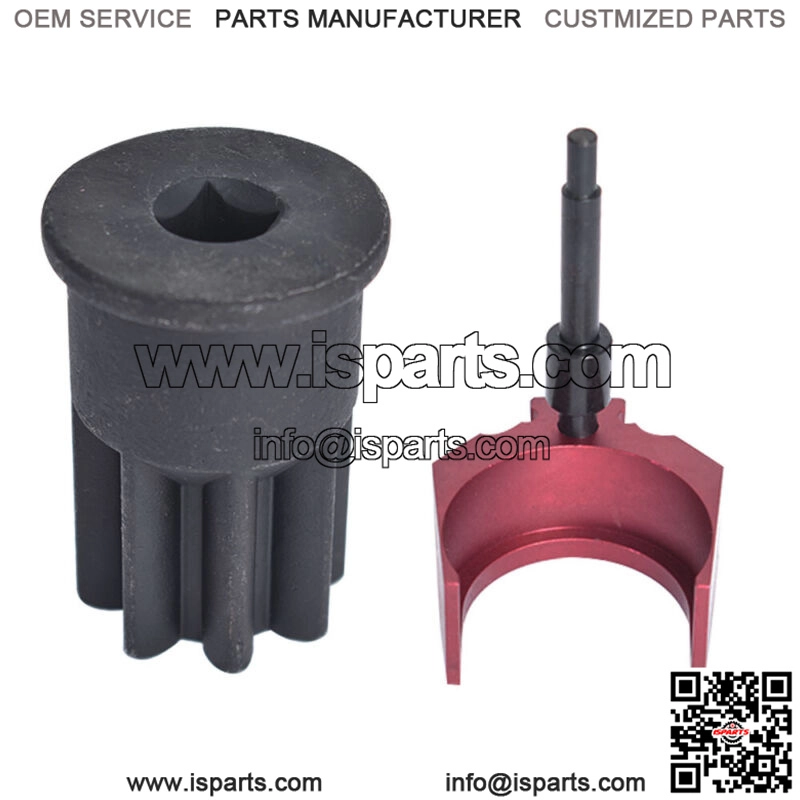

Diesel Engine Injector Timing Fixture fit for Caterpiller 3406E, C-15 and C-16;
Engine Barring Socket works on Mack E7/E-7 ETEC Engine, Caterpillar(CAT) engines 3200/3406 series C13/C15/C16/3208/3400/3406e/3508/3512/3500 EUI/MUI engines etc.
REPLACEMENT:
Injector Height Tool is alternative to 9U-7227??
properly maintain the Caterpillar Injector height;
6749 Engine Barring/Turning Socket is a direct replacement for J-38587-A Caterpillar 9S9082 0508477
(Replaces Part Number: ENL80-0054 & 9S9082)
EASY TO USE:
Put the Injector Height Tool on the injector to accurately adjust the Injector Height of the engine;
Well-designed barring socket meshes great with every tooth on the flywheel,
perfectly help you save energy to rotate the engine
CATERPILLAR Injector Height Tool??
Perfect fitment: Fits for Caterpiller 3406E, C-15 and C-16
Features: High quality Aluminum Alloy with red powder finish ensure great tolerance and good performance,
which can serve your engine a long time!
APPLICATION:
Injector height is adjusted by injector height adjusting tool and lock-nut located at the injector end of the rocker arm.
After finishing the valve adjustments, you need to adjust the injector height to 78.0 ?? 0.2 mm (3.07 ?? 0.01 inch) by using our tool. (The dimension is measured from the top of the unit injector to the machined ledge of the fuel injector body)
Last, just tighten the lock-nut to a torque of 100 ?? 10 N??m (74 ?? 7 lb ft)
ENGINE BARRING SOCKET??
Fitment: work on Mack E7/E-7 ETEC Engine, Caterpillar(CAT) engines 3200/3406 series C13/C15/C16/3208/3400/3406e/3508/3512/3500 EUI/MUI engines etc.
