Fitment list
2012-2013 Kawasaki Teryx4 750
2014-2023 Kawasaki Teryx4 800
2014-2023 Kawasaki Teryx 800
Specifications
Winch Mounting Plate
Item: UTV Winch Mounting Bracket
Material: Heavy-Duty Steel
Process: Black Powder Coated
Condition:100% Brand New
Winch Cable Stopper
Fit for ATV or UTV winch fairlead and works great with the synthetic rope and or the slot fairlead
Eliminates wear on your rollers and noisy sound from the hook
Protects the winch motor and gears when pulling the cable in and bottoming out on the Fairlead
Prevent the cable becoming loose
Winch Clevis Slip Hook
-Material: Forged Steel1/4″ high strength Grade 70 steel
-Replace in 30 minutesSafe and easy connects safety chains from trailer to tow vehicle,Design features a spring-loaded safety latch to help ensure secure attachment
-This hook resists damage even in the toughest elements, for long lasting wear resistance.
-With a 3/8″ diameter Clevis Pin held in place with a split pin,this hook fit a winch cable up to 2/5″ in diameter under the clevis.Clevis Width:2/5″
-The throat (or hook opening) measures 5/8″
-Clevis Pin To Inside Hook Bottom :2-1/2″
Synthetic Winch Line Cable Rope:
-Material: Ultra-high molecular weight polyethylene
-Protect sleeve design,Protecting the rope is not be damaged easily
-Color: Blue
-Length: 15m(50′). Thickness: 3/16″(4.76mm),3/16″ x 50′.Breaking Strength: Average 7000 lbs
-Replace your old cableSafe and easy to handle
-DesignHeavy duty nylon eye guard Hook Attachment
-Perfect for all your PLOW winching needs

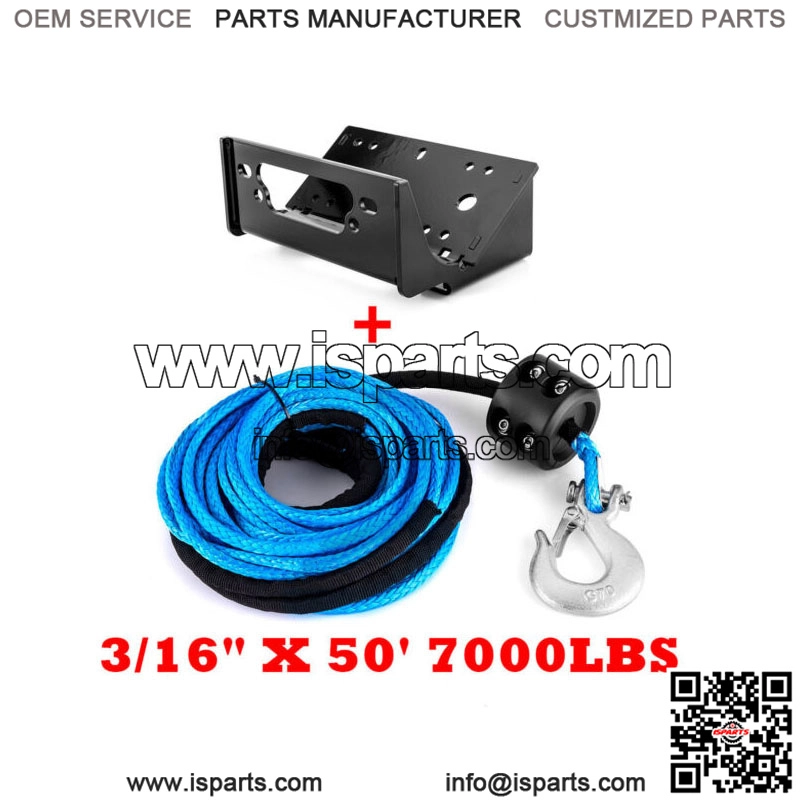

?̡?Package list??
1 X Winch Mounting Plate
1 x Winch Cable Stopper
1 x winch Clevis Slip Hook
1 x Synthetic Winch Line Cable Rope
1 X Installation Instruction
Winch Mounting Plate
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 (U45w-R2 and SE45w-R2 will NOT work on 2014-19 models)
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 / AS-50w
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000lb (Will NOT work with Vantage 4000 due to motor lead orientation)
WARN: ProVantage 2500-4500lbs
ProVantage 3500 and 4500 will require lead rotation.
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875″ bolt pattern;
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875″ bolt pattern;
SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875″ bolt pattern;
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00″ x 4.875″ bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00″ x 4.875″ bolt pattern mount-up
All with 3.00″ x 6.600″ bolt pattern mount-up
Traveller: 1078311 (1078311 Will NOT work on 2014-2015 models)
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875″ bolt pattern;
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)
2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
QUADBOSS: RP25 / RP35
