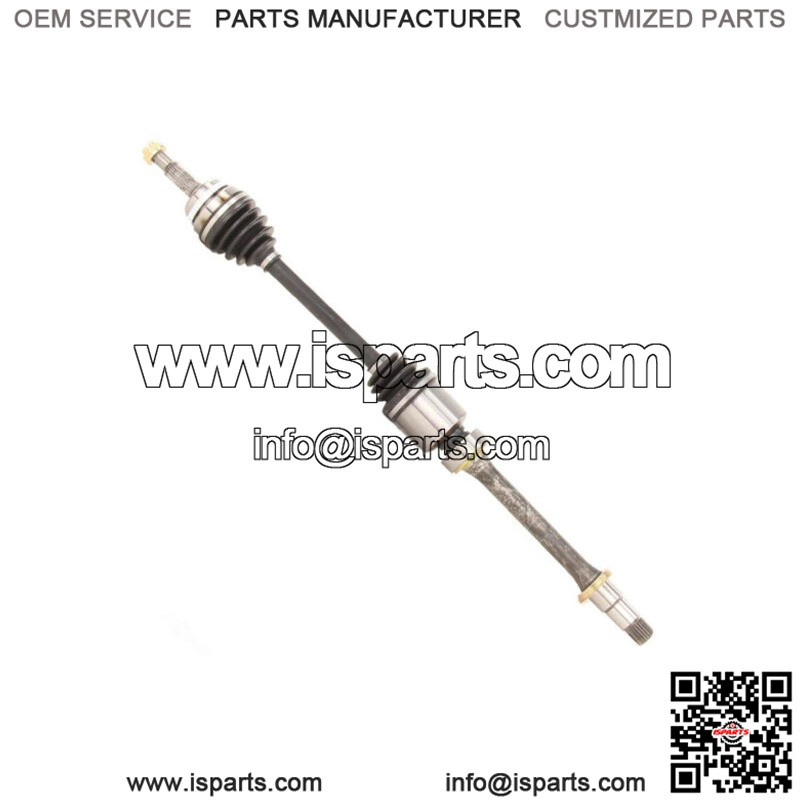

Front New CV Axle Shaft Assembly Passenger Side
Qty. Part Description
1 DSK2203 CV Axle Shaft
Compatibility Chart
Make Model Year Notes Position
Toyota Camry 2012 – 2017 Engine Designation 2AR-FE | 2.5L | Automatic Transmission | 5th Digit of VIN is F Front Right
Product Details
Weight 20.6 lbs
Height 4.3 in
Width 4.3 in
Length 42.9 in
ABS Ring Included Yes
Axle Boot Material Neoprene
Axle Nut Hex Size M22??1.5
Axle Nut Included Yes
Axle Nut Locking Type Threaded Slotted Lock
Axle Nut Thread Size M22??1.5
Boot Color Black
Cotter Pin Included No
Grease Type Molybdenum Disulfide Lithium Grease
Hardware Included No
Hazardous Material No
Inboard Clip Included No
Input Shaft Connection Style Spline
Items Included N/A
Number of Inboard Splines 26 Teeth
Number of Outboard Splines 24 Teeth
Output Shaft Connection Style Spline
Overall Compressed Length 38.46 in. / 977 mm
Shaft Material 40CR
Surface Finish Black Coating
