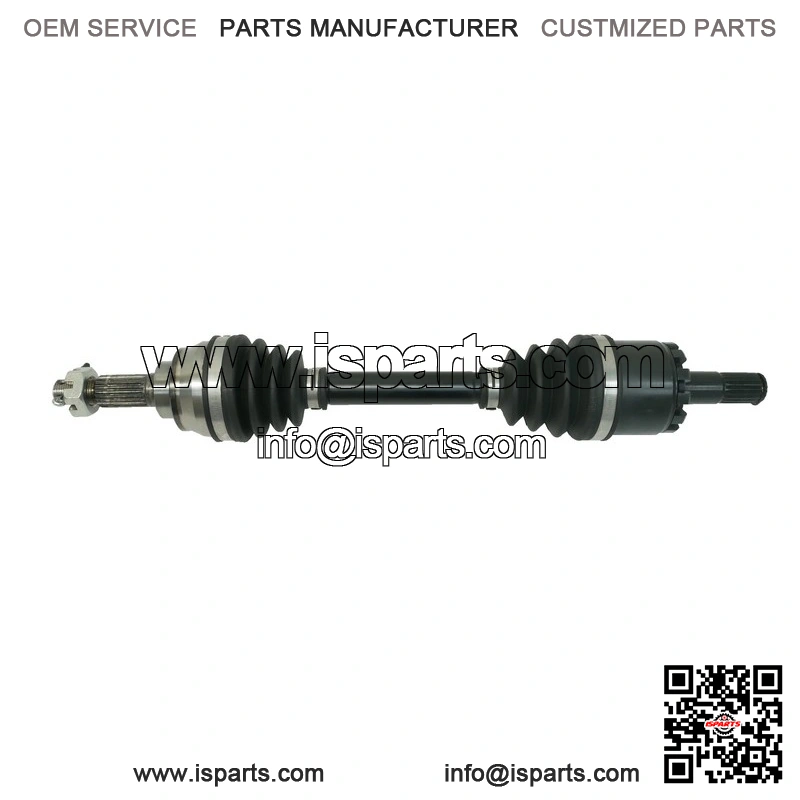

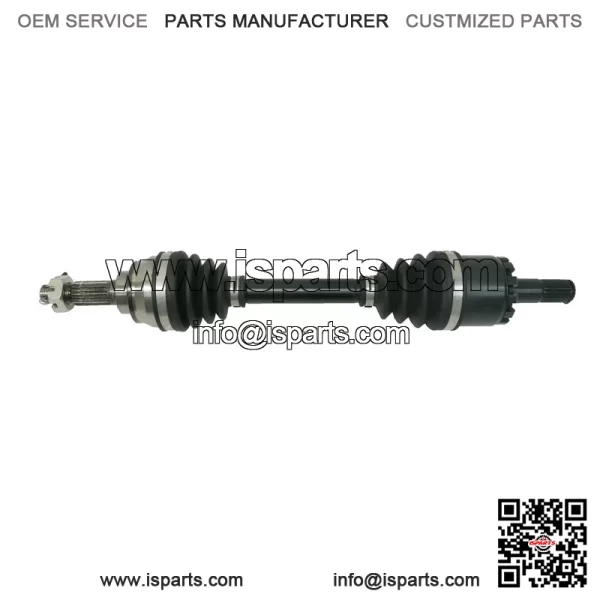

This is a new complete CV axle for a Kawasaki ATV.

It fits FRONT, LEFT (driver side) on the following 4×4 models:

2005-2013 Brute Force 650 (excluding 650 ‘i’ models)

2003-2013 Prairie 360

2002-2003 Prairie 650

2004-2006 Prairie 700

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar

Greased with a moly based grease to provide superior joint lubrication

Fitted with neoprene CV boots for added wear & puncture resistance

Compressed overall axle length: 485.5 mm

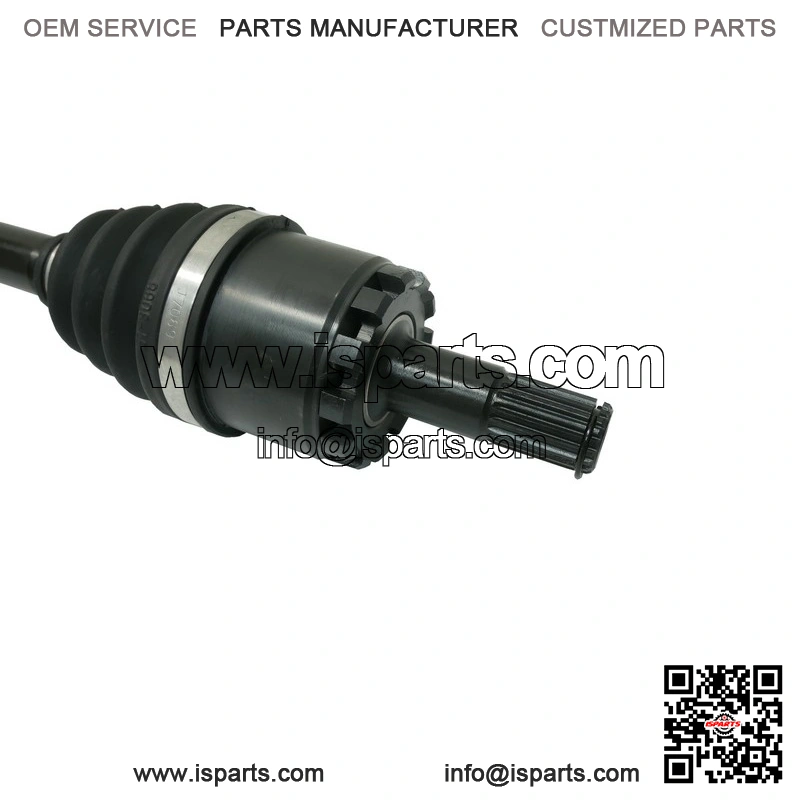

Inner CV joint spline count: 20

Outer CV joint spline count: 21

Replaces OEM # 59266-1135, 59266-0032, 59266-1129
