Premium Quality Replacement Part
Front Rear Drive Chain Sprocket
Compatible with Honda Models:
CB500F 2013-2019
CB500F ABS 2013-2019 2021
CB500X 2013-2018
CB500X ABS 2013-2018
CBR500R 2013-2021
Order Includes:

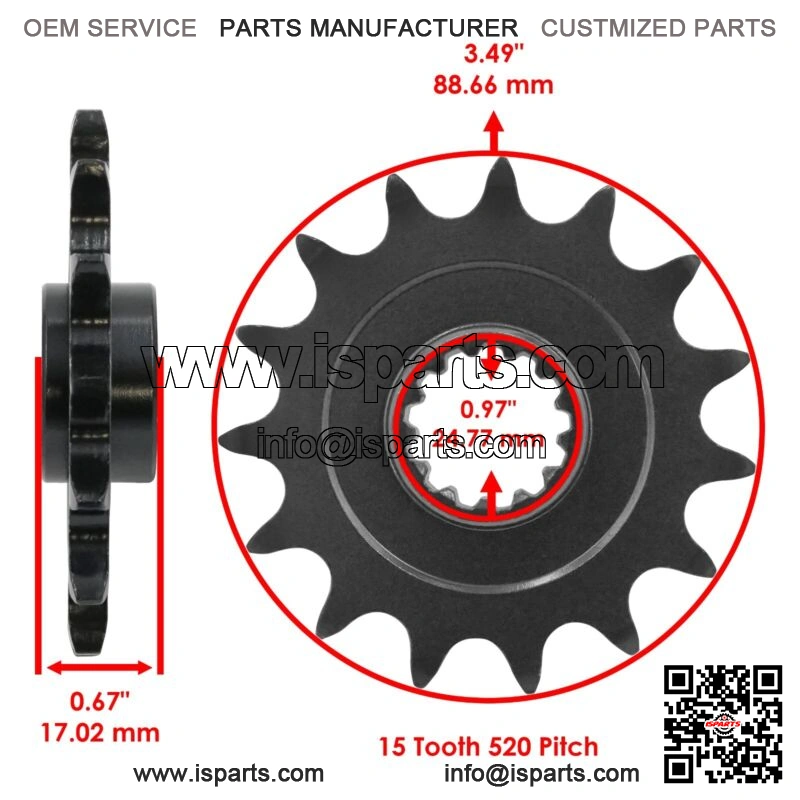

1 x Front Sprocket : 23801-MKP-D00, 41201-MGZ-D00
Width : 17.02mm – 0.67in
Inner Diameter : 24.77mm – 0.97in
Outer Diameter : 88.66mm – 3.49in
15 Tooth , 520 Pitch

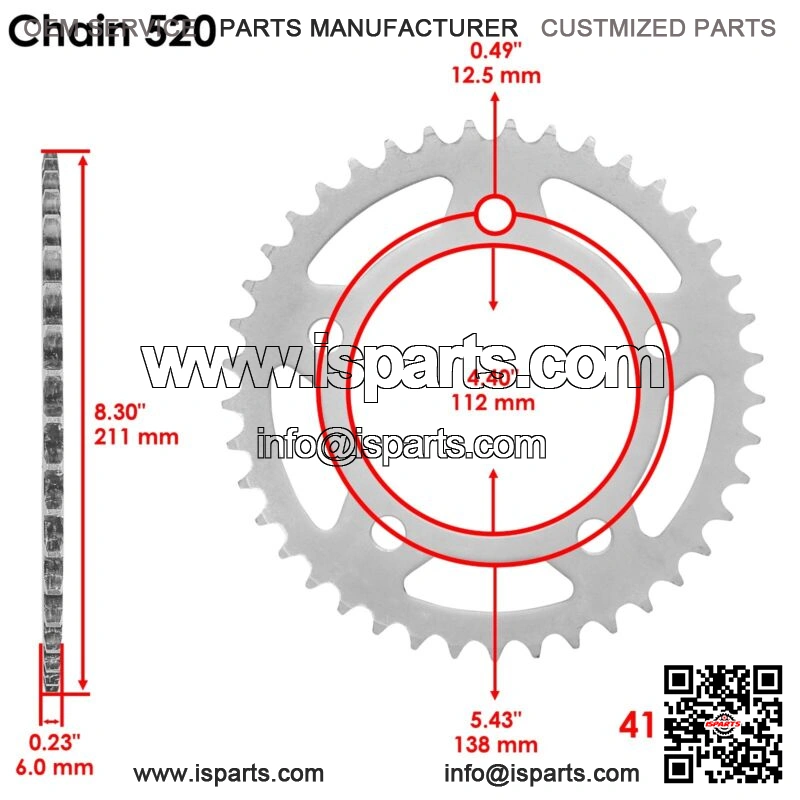

1 x Rear Sprocket : 23801-MGZ-J01, 23801-MGZ-J00, 41201-MKP-J00
Width : 6.0mm – 0.23in
Length : 211mm – 8.30in
Inner Diameter : 112mm – 4.40in
Outer Diameter : 138mm – 5.43in
41 Teeth , 520 Chain
