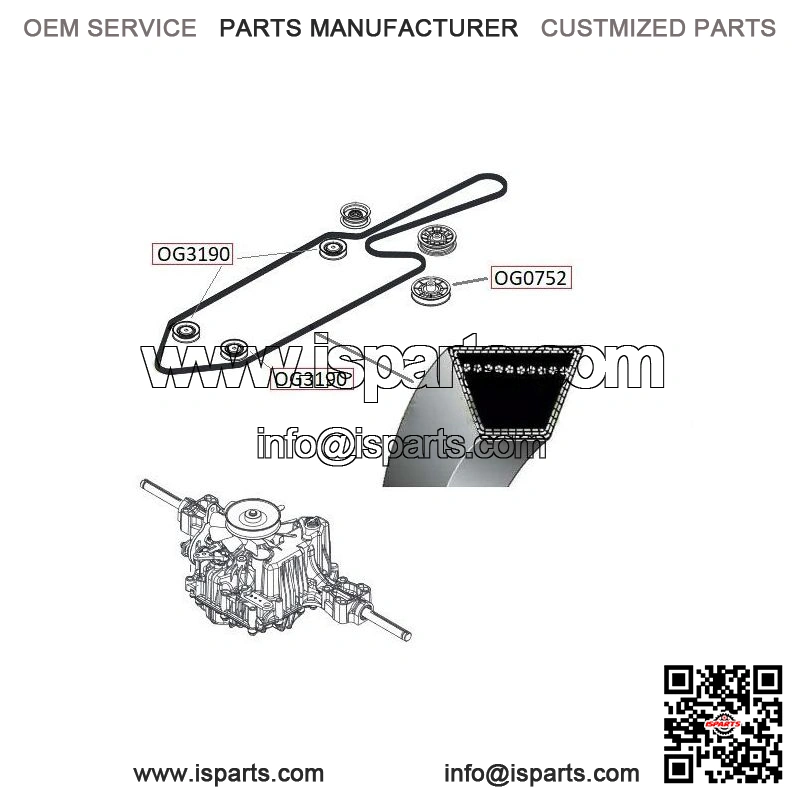

More information about the product A113″Li / A115″Ladrive belt for tractors with 97cm and 107cm (38 and 42″) cutting
Widths and with the Tuff Torq K46DF gearbox.
Outer length:La2925mm
Working length: Lw2902mm
Inner length: Li2870mm
Width: 13mm (1/2″)
Height: 8mm
Manufacturer:
Kramp FGP420297
Replacement / Original No. – 5324427-81
Application: Brand Models / Type
HUSQVARNA CTH164T, CTH184T, CTH204, CTH224after 2011, TC139T, TC142, TC142T, TC238, TC242, TC338, TC342 JONSERED LT2317CMA, LT2317CMA2, LT2318CMA2, LT2320CMA2, LT2323CM2
How to measure a belt:
Outer circumference – LA is measured on the outside of the belt. In the case of longer belts, it is important to measure in an arc on the outside (with a tailor’s tape).
Working circumference – LW is measured in a straight line, after cutting, by stretching the tape measure along the belt (with a measuring tape).
Inner circumference – LI is measured inside the belt (with a special tape measure for belts).
You should also remember about the
Width of the belt, if the original belt is 13mm (1/2″) wide, you should not use a belt with a
Width of 10mm (3/8″) or 17mm (5/8″).
