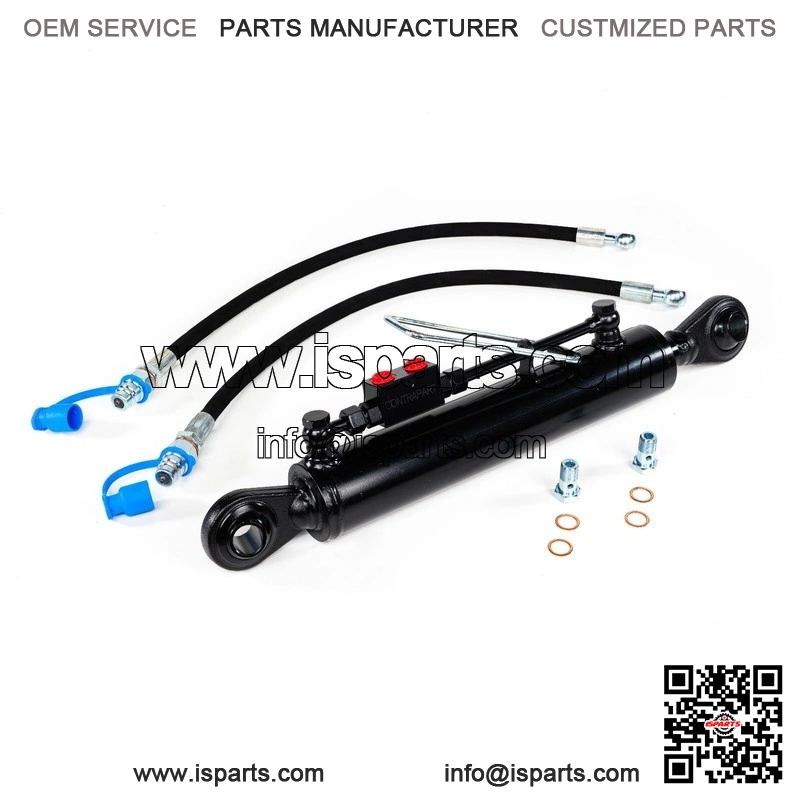

Hydraulic Top Link Cat. 2-2 with Locking Block 22 3/8?? – 33 1/2 with 2 x Hose
Hydraulic Top Link Cat. 2-2 with Locking Block 22 3/8?? – 33 1/2 with 2 x Hose
Hydraulic Top Link Cat. 2-2 with Locking Block 22 3/8?? – 33 1/2 with 2 x Hose
Description
Furnishing:
High quality and workmanship and painted
Incl. Locking block
Top link cat. 2
2x hydraulic connection
Delivery is completely assembled
Technical specifications:
Hydraulic connection: 3/8 ”
E: 570-850 mm
A: 63 mm
W: 73 mm
C: 35 mm
M: 75 mm
N: 51mm
H: 25.4 mm
F: 65 mm
D: 280 mm (stroke)
Hydraulic pressure max. 200 bar
Thrust: 4 to
Pulling force: 2.5 to
Weight about 13 kg
+
2 x hydraulic hose with plug and dust cover
Technical specifications:
Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union
Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
Operating pressure: 180 bar
Length: 75 cm
