Specification:

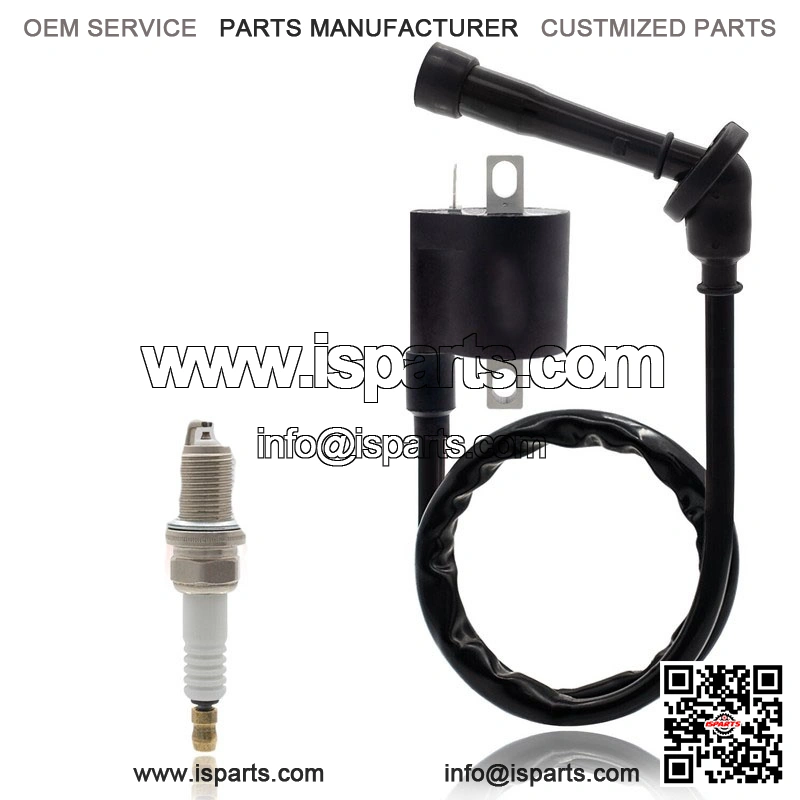

Ignition Specifications:
Primary Coil: 0.4-0.5 ohm
Secondary Coil with spark plug: 5.13 k ohm
Coil total length: 345mm / 13.5″
Coil bot length: 90mm / 3.5″
Spark plug Specifications:
Type: Removable Terminal Nut (Terminal stud)
Material: Metal
Length: 75mm (2.97 inch)
Metal Thread Diameter: 14mm
Hex Size: 16mm
Fitment:
2013 Suzuki Quadsport Z400 LTZ400 2×4
2012 Suzuki Quadsport Z400 LTZ400 2×4
2012 Suzuki Quadsport Z400 LTZ400Z 2×4 Limited Edition
2009 Suzuki Quadsport Z400 LTZ400 2×4
2009 Suzuki Quadsport Z400 LTZ400Z 2×4 Limited Edition
2008 Suzuki Quadsport Z400 LTZ400 2×4
2008 Suzuki Quadsport Z400 LTZ400Z 2×4 Special Edition
2007 Suzuki Quadsport Z400 LTZ400 2×4
2006 Suzuki Quadsport Z400 LTZ400 2×4
2005 Suzuki Quadsport Z400 LTZ400 2×4
2004 Suzuki Quadsport Z400 LTZ400 2×4
2004 Suzuki Quadsport Z400 LTZ400Z 2×4 Limited Edition
2003 Suzuki Quadsport Z400 LTZ400 2×4
Package Include:
1 x Ignition Coil
Replace Part Number:
33410-09F00
