Premium Quality Replacement Part

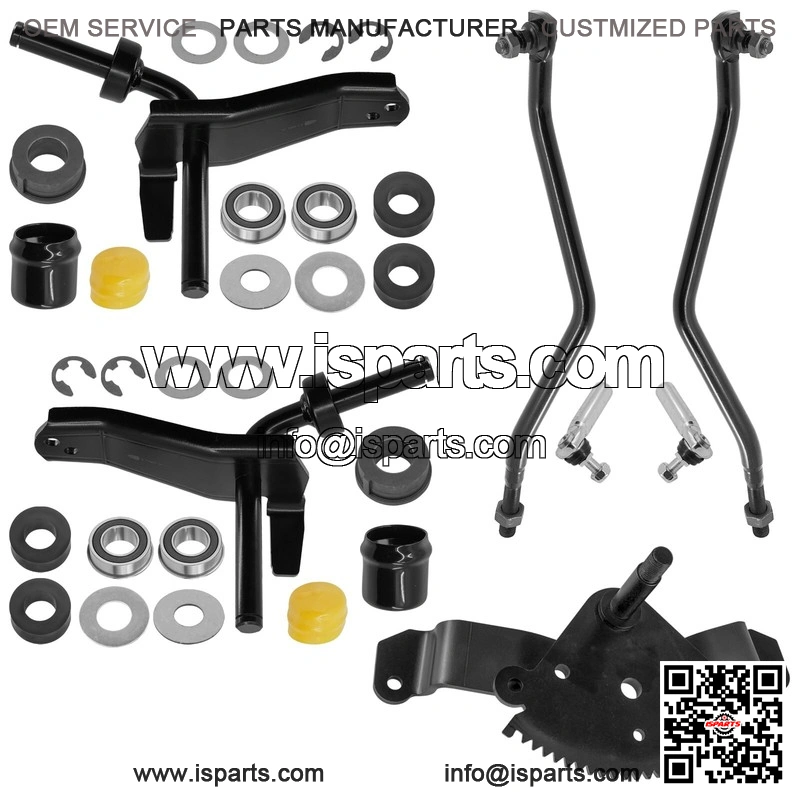

Steering Spindle & Gear & Drag link Kit
Compatible with John Deere Models:
X300 X304 X320 X324 X340 X500 X520
Order Includes:

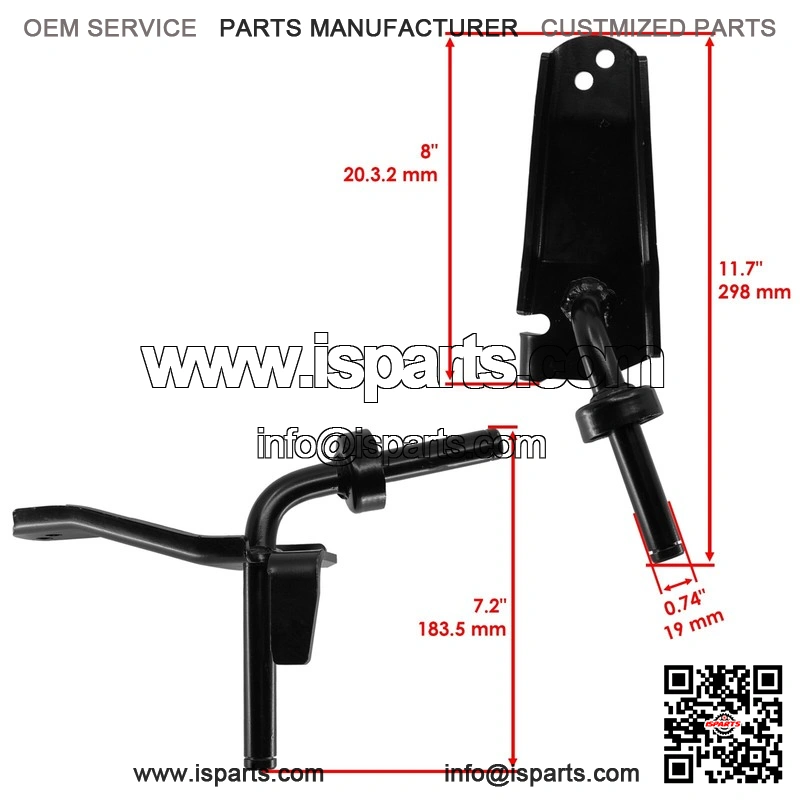

1 x Right Spindle: AM135682
Length: 298.0 mm
Height: 183.5 mm
Tube Diameter: 19.0 mm

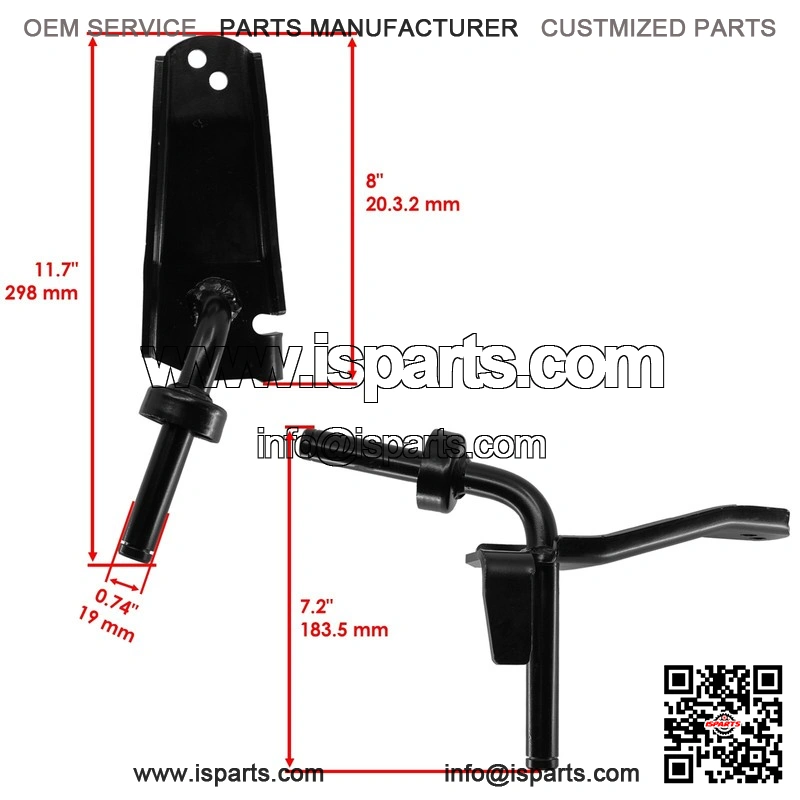

1 x Left Spindle: AM135681
Length: 298.0 mm
Height: 183.5 mm
Tube Diameter: 19.0 mm
2x Washer: AM135681
Inner Diameter : 21mm
Outer Diameter: 50.5mm
Thickness : 1.51mm
4x Clip: R27434
2x Washer: M123254
Inner Diameter: 21.36mm
Outer Diameter: 41.8mm
Thickness : 1.41mm
4x Bearing: M123254
Inner Diameter: 19mm
Outer Diameter: 38mm
Thickness : 13mm
2x Cap: M143338
2x Cap: M151831
4x Bushing: M151828

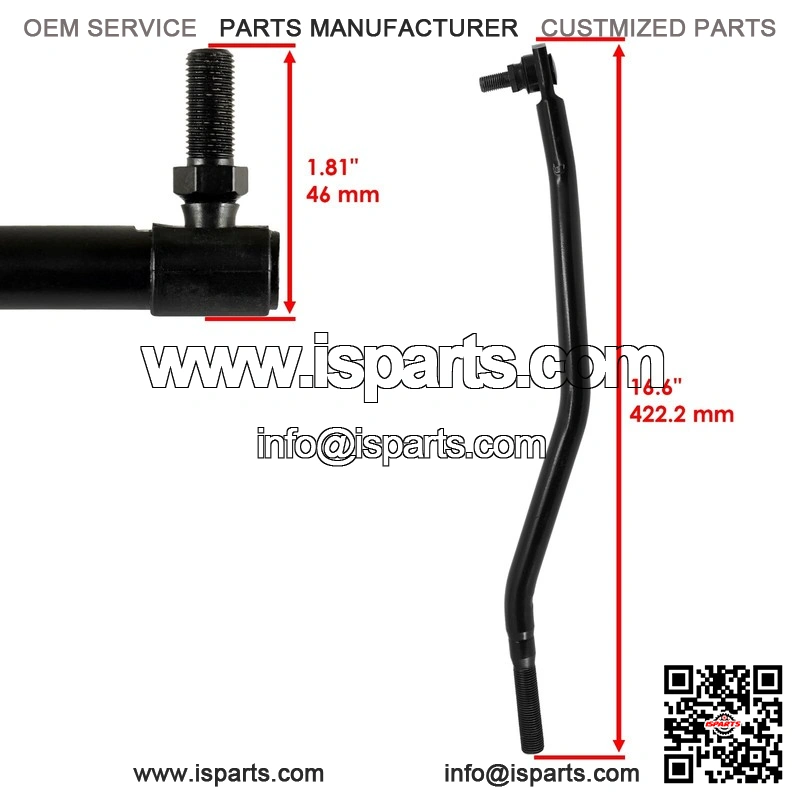

1x Left Side Tie Rod : AM137992
Length : 422.2mm

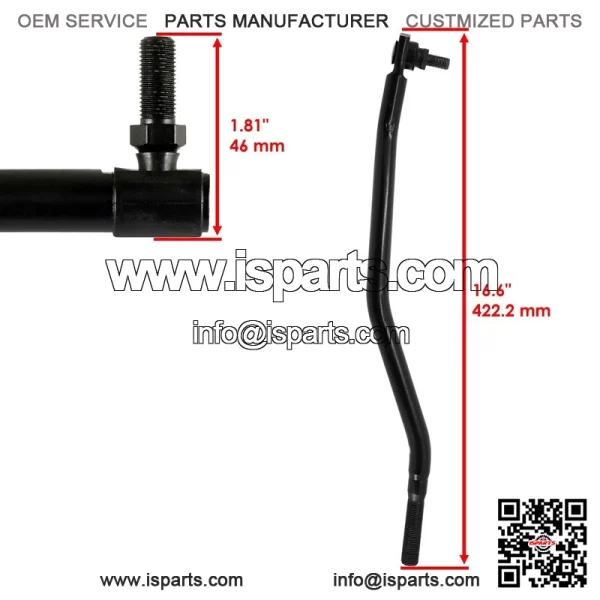

1x Right Side Tie Rod : AM137993 AM134804
Length : 422.2mm
1x Steering Gear: AM136297 M151206
Length: 345.4 mm – 13.6 in
Width: 152.4 mm – 6 in
Height: 96.5 mm – 3.8 in
2x Tie Rod End : AM137999 AM134795
Width: 53.15 mm – 2.09 in
Height: 98.20 mm – 3.86 in
4 x Steering Washer : M41361
Inner Diameter : 19.30 mm – 0.75 in
Outer Diameter : 32 mm – 1.25 in
Thickness : 1.07 mm – 0.04 in
2x Bushing : M151827
Inner Diameter : 56.4 mm – 2.22 in
Outer Diameter : 63.2 mm – 2.48 in
Thickness : 21.9 mm – 0.86 in
