Functions:
Turn signal, running, braking,licens light integrated in 1
Turn Left & Turn Right (Bright Amber)
Running Light (Low Red)
Braking Light(High Red)
License Plate Light(White)
Specification:
Power: 30W
Color temperature: 6500K-7000K
Voltage??12V-30V DC
Lumens??2000LM*2
Size??4.9″ x 3.5″ x 2.2″ (125mm x 88mm x 57mm)
Bezel Color:Black
Lens Color: Smoke
Waterproof??IP-67
Working temperature??-40+85??C
Life time??50000+Hours
Material: ABS Plastic
Function(Lighting Color): Brake/ Running Light(Red),Turn Signal(Amber, Left and Right), License Plate Light(White)
Features
All in One Led Tail Light(LED Tail Light with running light/brake light/Turn Signal Light)
License Plate Light (Lights up nice and bright and includes a clear lens to illuminate your license plate on the incorporated plate bracket.)
Lay Down Style (Lay down style, which is angled to follow the curve of your stock fender for the customized look.)
Wire Connection:
Black Wire——Negative
White Wire—–Running
Red Wire——-Brake Light
Yellow Wire—-Turn Right
Blue Wire——-Turn Left
—-Upgraded the connector, according to wire diagram, insert the wire to corresponding hole, directly plug in which get easier to install, but each model harness is different so we leave the wire end(running&brake) out of the plug for you, then you can insert them in the right position according to your model. Integrated turn signal lights, blue wire(turn left) and yellow wire(turn right) for you to connect according to your needs.
Note: The connector is not included.
Application:
2007-2016 Harley Touring Road King FLHR
2006-2011 Sportster SuperLow XL 1200L
1999-2019 Sportster Custom XL 1200C
1999-2003 Sportster Sport XL 1200S
2004-2007 Sportster Roadster 1200R
2004-2006 Harley Sportster XL883
1999-2009 Sportster Custom – XL 883C
2011-2019 Sportster Super
Low – XL 883L1999-2010 Dyna Super Glide FXD
1999-2017 Dyna Low Rider FXDL
2006-2008 Dyna Street Bob (EFI)-FXDB
2008-2013 Dyna Fat Bob-FXDF
2012-2016 Dyna Switchback FLD
1993?C2005, 2007?C2008, 2016 FXDWG Dyna Wide Glide
1999-2009 Electra Glide Standard
1999-2006 Electra Glide Ultra Classic Injected
2006-2016 Heritage Softail FLSTF
1999-2017 Heritage Softail Classic FLSTC
1999-2009 Road Glide FLTR
1999-2016 Road King FLHR
1999-2017 Softail Fat Boy FLSTF
2010-2016 Softail Fat Boy Lo FLSTFB
1999-2016 Softail Night Train FXSTB
1999-2006 Softail Standard FXST
2006-2013 Street Glide – FLHX
* It can not be installed on models with exclusive tail light such as XL 1200X, XL883N or Dyna wide glide,2007 Harley Davidson Sportster XL1200L.
Connector:
Please confirm the red wire(brake function) and white wire(running function) position
After confirm the position, then insert them in, and press the plug. Please double check red and white wire position before you insert them to the white plug of the taillight, because they can not be taken out from the plug once they are inserted into the white plug.
Integrated turn signal lights, using the yellow wire(turn right) blue wire(turn left) from the tail light, they can be connected to your current turn signals to add LED turn signal functions.
Note: Some old model it may need the resistor(package is not include) for turn signal if it is hyper flashing.
Package:

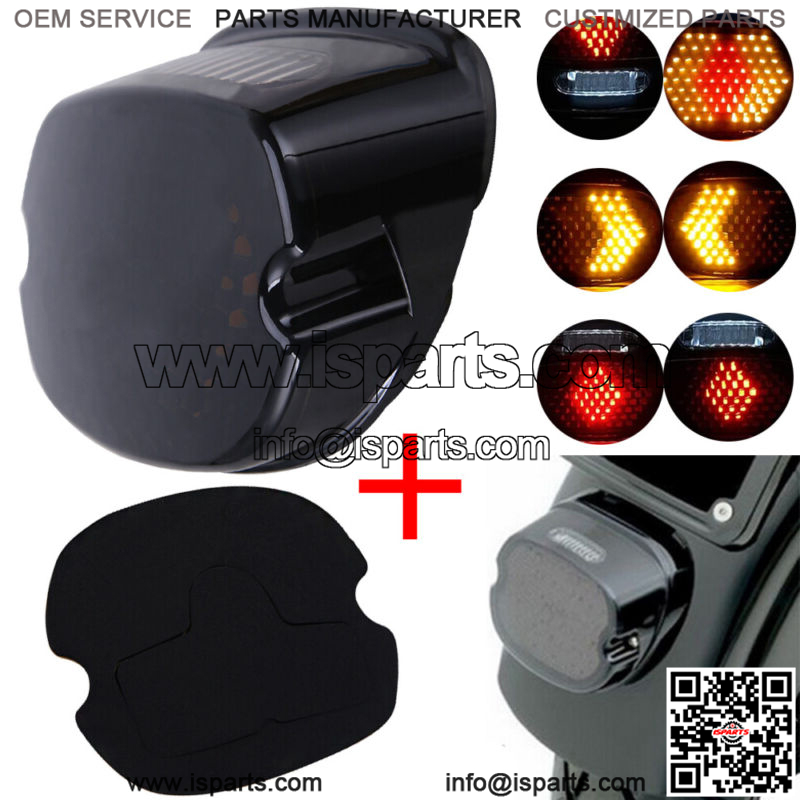

1 Piece of Low Profile Harley Davidson Led Tail Light
1 Piece of Gasket (prevent water infiltration)
