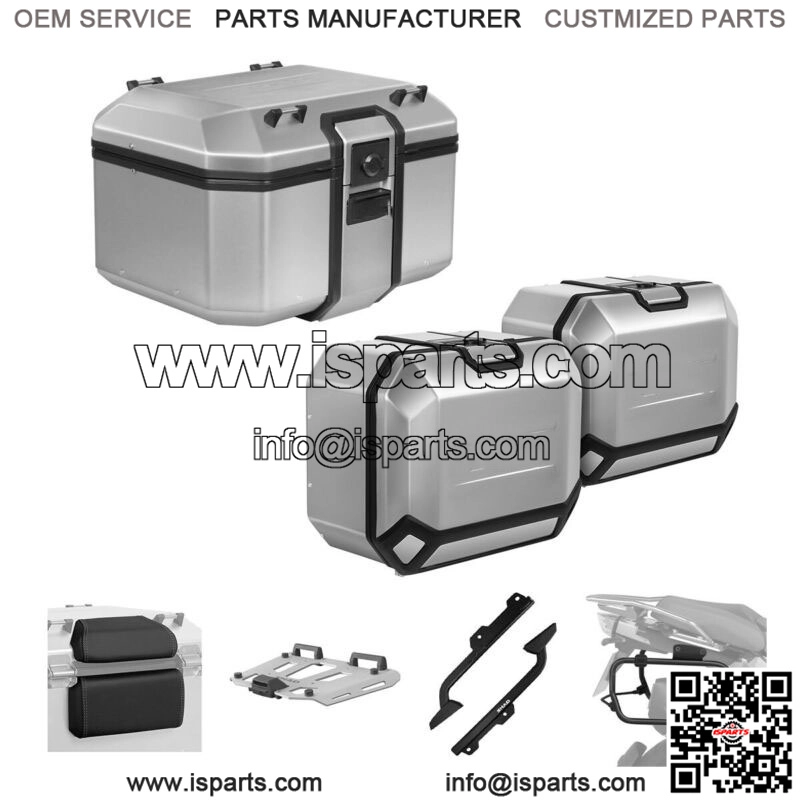

Detailskit composed of the following items:
TERRA TR48 ALUMINUM MOTORCYCLE TOP CASE 48L
D0TR48100
The TR48 top case is designed and produced 100% in Barcelona and has the capacity for a trail helmet or two helmets (full face + jet). It features a streamlined, integrated structural design and is made of hardened aluminum alloy, a type of aluminum that allows for a slim 1.2mm thickness for maximum strength with minimal weight. Hinges in AISI 304 stainless steel.
Equipped with integrated “TERRA Lock System” locking system (patent pending). This is an industrial grade AISI 304 stainless steel frame that includes the locking system and integrated retractable handle. Designed for quick one-handed use, it allows the user to open and close the suitcase, as well as fix and remove it in seconds.
Maximum protection for your luggage thanks to its internal base in pressed rubber foam, which reduces the movement of the load inside.
Possibility of adding further load thanks to its external hooks in AISI 304 stainless steel.
To install the top case on the motorbike, a specific TOP MASTER fixing kit and a plate are required (not included). Three plate options available: standard plate (D1B591PA), aluminum plate or black aluminum plate (D1BTRPA2).
The key lock bushings are easy to change: in less than 5 minutes you can replace those on the side cases or top case to use a single key. An additional lock bushing for the top case is included in the right case.
Optional accessories (not included): backrest made up of two parts (D0RI75) and expandable internal bag (X0IB47)
MOTORCYCLE SIDE CASE TERRA TR47 ALUMINUM LEFT SIDE 47L
D0TR47100L
The TR47L side case is designed and produced 100% in Barcelona and can accommodate a Trail helmet or two helmets (full face + jet). It features an aerodynamic, integrated structural design and is made of hardened aluminum alloy, a type of aluminum that allows for a reduced thickness of 1.2 mm to achieve maximum strength with minimum weight. AISI 304 stainless steel hinges that allow you to leave the suitcase on the ground without it tipping over, and ABS protections to strengthen the suitcase against impacts.
Equipped with integrated “TERRA Lock System” locking system (patent pending). This is an industrial grade AISI 304 stainless steel frame that includes the locking system and integrated retractable handle. Designed for quick, one-handed use, it allows the user to open and close the suitcase, as well as fix and remove it in seconds.
The keys and lock bushings of the TR47L suitcase correspond to the latest premium version of SHAD, with a system that reduces the possibility of theft and with a cover that protects the lock from the ingress of dust. Attention: the additional lock bushing is not included in the left side TERRA case and can be purchased separately (code D1TRB0).
Side opening: perfect for “packing”, with large capacity and space, and with an internal rigid tray that helps hold the load, preventing it from falling when the suitcase is opened.
Terra side cases are designed to be attached to the motorcycle via the new 4P system. It is a tubular steel structure with high-resistance painting. The 20 mm diameter tubular, the one with the largest circumference on the market, offers maximum stability and resistance, in addition to the reinforcing cross bar, designed to withstand the most extreme conditions.
It is possible to replace the lock bushing of the suitcase to unify it with that of the other side suitcase and/or the top box. The bushings are easy to change: in less than 5 minutes you can replace them and use a single key to open the two suitcases and the top case.
Accessories (not included): expandable internal bag (X0IB47) and internal net (X0TR01).
MOTORCYCLE SIDE CASE TERRA TR47 ALUMINUM RIGHT SIDE 47L
D0TR47100R
The TR47R side case is designed and produced 100% in Barcelona and has capacity for a trail helmet or two helmets (full face + jet). It features an aerodynamic, integrated structural design and is made of hardened aluminum alloy, a type of aluminum that allows for a reduced thickness of 1.2 mm for maximum strength with minimum weight. AISI 304 stainless steel hinges that allow you to leave the suitcase on the ground without it tipping over, and ABS protections to strengthen the suitcase from impacts
Equipped with integrated “TERRA Lock System” locking system (patent pending). It is an industrial grade AISI 304 stainless steel structure that includes the locking system and integrated retractable handle. Designed for quick one-handed use, it allows the user to open and close the suitcase, as well as fix and remove it in seconds.
The keys and lock bushings of the TR47R suitcase correspond to the latest premium version of SHAD, with a system that reduces the possibility of theft and with a cover that protects the bushing from the ingress of dust.
Side opening: perfect for “packing”, with large capacity and space, and with an internal rigid tray that helps hold the load, preventing it from falling when the suitcase is opened. The TR47R includes an internal net that helps keep cargo inside.
Terra side cases are designed to be attached to the motorcycle via the new 4P system. It is a tubular steel structure with high-resistance painting. The 20 mm diameter tubular, the one with the largest circumference on the market, offers maximum stability and resistance, in addition to the reinforcing cross bar, designed to withstand the most extreme conditions. More information in “How to buy Terra suitcases”
The TR47R includes 3 lock bushings and 2 keys, to use a single key to open suitcases and top cases. The key lock bushings are easy to change: in less than 5 minutes you can replace those on the side cases or top case
Optional accessories (not included): expandable internal bag (X0IB47).
Luggage Rack for TOP MASTER Top Case
H0CX56ST
The Top Master fixing kit allows you to mount the top case to the motorbike. This is a system designed specifically for each motorcycle model, based on the vehicle’s characteristics. The result is a high quality, comfortable and safe product, easy to assemble and disassemble.
To mount the top case to the motorbike it is necessary to use the plate included in the top case. (Except for TERRA cases).
Compatible with medium (D1B40PA) & large (D1B591PA) mounting plates, valid for TERRA/SH59X/SH58X/SH50/SH48/SH47/SH46/SH45/SH44/SH40/SH39 top cases. To use with SH37/SH34/SH33/SH29/SH26 a medium mounting plate is required.
ATTENTION: top case fitting kit not compatible with aluminum mounting plate.
D1BTRPA TOP MASTER ALUMINUM GRAY Top Case Plate
D1BTRPA
Plate made of 5 mm aluminum with high quality finishes, which provide additional scratch resistance and facilitate cleaning of the product. The laser cutting gives the plate an innovative and functional design: better integration with the design of the motorbike and fixing points to carry an additional load when the suitcase is not installed. The grill was designed and produced in Barcelona and is compatible with top cases from the Terra range (TR48, TR37, TR90).
Top Case Backrest TERRA TOP CASE BACKREST
D0RI75
Backrest (cushion) for Terra Top case. Consisting of two parts. Indispensable for passenger comfort. Cushion made of high quality, high performance Skay bi-elastic polyurethane, which guarantees long life even in extreme conditions.
4P SYSTEM Side Case Frames
H0ICX594P
Designed and developed 100% in Barcelona to attach TERRA side cases, it is also compatible with SH35 and SH36 side cases. It is a steel structure covered with high hardness metallic paint. Thanks to its diameter of 20 mm, the thickest on the market, it offers maximum firmness and resistance to a set that is also reinforced with a crossbar for the most extreme rides.
ATTENTION: NOT COMPATIBLE WITH TR40
