This Trailer Tow Hitch + 7-WayFits The Following Vehicles:
2011 – 2019 Chevrolet Silverado 3500 HD Except Cab & Chassis

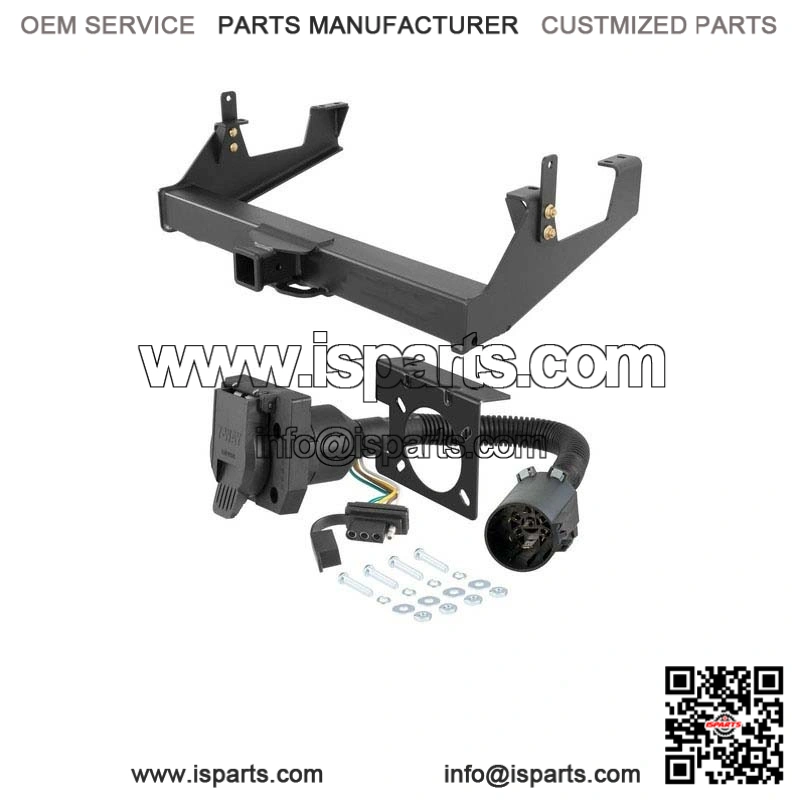

This Trailer Tow Hitch + 7-Way Includes the Following Parts:
Commercial Duty Class 5 Hitch, 2-1/2″ (Drilling Required)
Dual-Output 7 & 4-Way Connector (Plugs into USCAR)
Installation instructions, schematics, diagrams, and hardware (if required).
List ofFitment Years:
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
15860 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver
In the world of commercial towing, more is expected A job cannot be completed if the equipment cannot handle the workload That is why developed the Commercial Duty class 5 trailer hitch.
Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular class 5 hitchFeatures a gross trailer weight capacity of 20,000 lbs.
and a tongue weight capacity of 2,700 lbs It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (to verify your vehicle compatibility, see application info) All Commercial Duty class 5 hitchesFeature a 2-1/2″ x 2-1/2″ receiver tube opening to accept the strongest of ball mounts and towing accessories.
They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish They also mount with grade-8 hardware, included with each hitch..
Features:
Rated to 20,000 lbs. gross trailer weight and 2,700 lbs. tongue weight
Compatible with weight distribution hitch (20,000 lbs. WD / 2,700 lbs. WDTW)
Engineered with a vehicle-specific design for a customFit
Tested for safety in accordance with SAE J684
Precisely welded for superior strength andFit
Constructed with a large, powerful main body
Protected by a highly durable carbide powder coat finish
Co-cured in a rust-resistant liquid A-coat, inside and out
Features wide safety chain openings for heavy-duty hooks
Equipped with an open-back receiver for easy cleaning
55774 Dual-Output Vehicle-Side 7-Pin, 4-Pin Connectors, Factory Tow Package and USCAR Socket Required
A custom wiring connector (sometimes called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring Most vehicles do not come ready to tow Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector.
This is where CURT’s custom wiring connectors come into play A custom wiring connector uses a single original equipment plug to plug into a special socket provided by your vehicle Though this option is not available on every vehicle, some automotive manufacturers design their vehicles to be easily equipped for towing by supplying a socket, integrated into the vehicle’s electrical system, to readily accept a custom wiring connector.
With a custom wiring connector, there is no need to tap into the taillight assembly because a special socket is already provided This special custom wiring connector actually provides two connector sockets for a multipurpose option It plugs into an OEM connector and offers a 4-way flat and 7-way RV blade connector.
It comes with a mounting bracket for easy installation and is designed to be a custom wiring option for a variety of vehicles (see application info to verifyFitment) custom wiring connectors are designed to be long-lasting and simple to install They come with dust covers to keep your connector clean when not in use..
Features:
Dual-Output 7 & 4-Way Connector (Plugs into USCAR)
Plugs into USCAR socket to provide 4-way and 7-way trailer wiring connectors
Fits USCAR-equipped vehicles with factory tow plugs only
Simple plug-and-play design eliminates the need for cutting or splicing
4-way flat output connects tail lights, brake lights and turn signals
7-way RV blade socket adds reverse lights, electric brakes and auxiliary power
Dust covers included to keep connectors clean when not in use
Slit loom keeps wires contained and well protected
Metal bracket securely mounts wiring to the vehicle or trailer hitch
