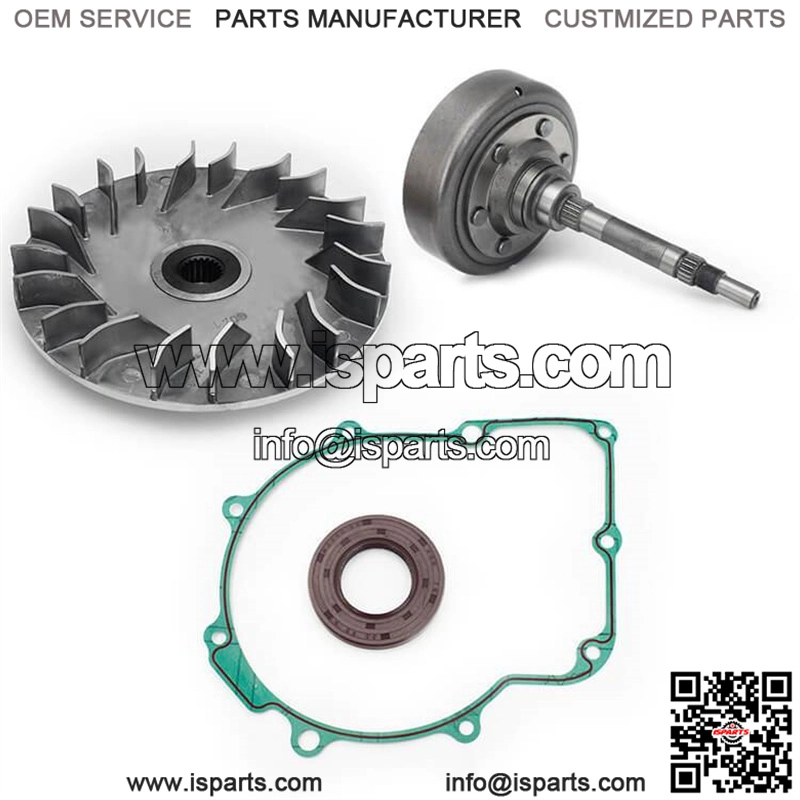

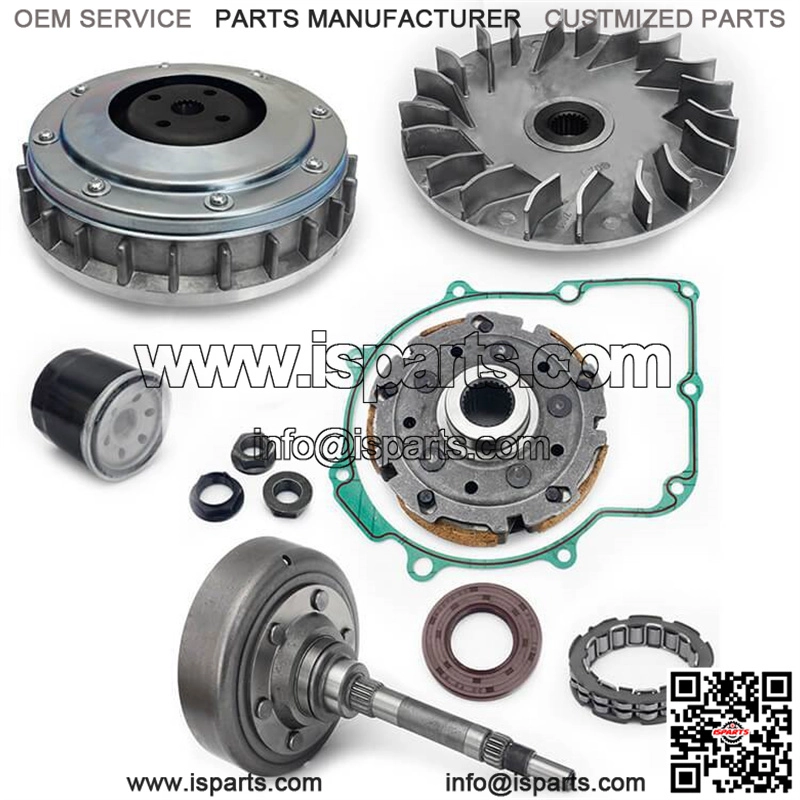

Wet Clutch Assy Primary Drive Clutch Fixed Sheave Assy for Hisun Primary Clutch 500 700 ATV/UTV
Wet Clutch Assy Primary Drive Clutch Fixed Sheave Assy for Hisun Primary Clutch 500 700 ATV/UTV
Wet Clutch Assy Primary Drive Clutch Fixed Sheave Assy for Hisun Primary Clutch 500 700 ATV/UTV
Post date
April 18, 2024 - Updated on April 18, 2024
Description
Fit for:
Bennche Bighorn 500, 700, 700HD, 700X-HD;
Excalibur UTV500-4, UTV700-4, UTV700-5;
Hisun UTV500, UTV700;
Massimo Alligator 500, 700, 700-4;
Menards Yardsport YS500, YS700;
Qlink FrontRunner 500 EFI, 700 EFI, 700XL EFI;
Supermach UTV500-BF-TL, UTV700-BF-TL;
Menards Yardsport EFI UTV 500 & 700 cc;
For Hisun Primary Clutch 500 700 ATV/UTV.
Replaces OEM#:
Clutch Primary Fixed Sheave–HISUN: 21300-F39-0000-A, 90600-004-0000, 21400-004-0000, 324700003.
Clutch Cover Drum Housing–HISUN: 21210-F39-0000, 21210-004-0000000, 324700005.
One Way Bearing–HISUN: 21220-004-0000, 21220-f39-0000.
Pad Shoe–HISUN: 21230-004-0000, 21230-F39-0000.
Oil Seal–HISUN: 91103-F39-0000, 91103-004-0000.
Clutch Gasket–HISUN: 21241-004-000, 21241-F39-000, 305700009.
Clutch Nuts–HISUN: 6172.1-22-2, HISUN: 6172.1-16-1.
Oil Filter–HISUN: 15200-F39-0000, 15200-003-0000.
Kit1: Primary Dry Clutch CVT Sheave Assy + Clutch Primary Fixed Sheave.
Kit2: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave.
Kit3: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave + Dry Clutch CVT Sheave Assy.
Kit4: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave +One Way Bearing.
Kit5: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave + Gasket + Oil Seal.
Kit6: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave + One Way Bearing + Pad Shoe +Primary Dry Clutch CVT Sheave Assy.
Kit7: Wet Clutch Pad Shoe + Clutch Primary Fixed Sheave + Clutch Cover Housing + One way Bearing + Clutch Cover Gasket + Clutch Flange Nuts + Wet Clutch Oil Seal.
Kit8: Clutch Primary Fixed Sheave + Clutch Cover Housing + Wet Clutch Pad Shoe + One way Bearing + Clutch Cover Gasket + Clutch Flange Nut + Wet Clutch Oil Seal + Oil Filter.
Kit9: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave + Primary Dry Clutch CVT Sheave Assy + Wet Clutch Pad Shoe + One Way Bearing + Flange Nuts + Gasket + Oil Seal + Oil Filter.
Kit10: Wet Clutch Cover Drum Housing + Clutch Primary Fixed Sheave + Primary Dry Clutch CVT Sheave Assy + Wet Clutch Pad Shoe + One Way Bearing + Flange Nuts + Gasket + Oil Seal + Oil Filter + Secondary Driven Clutch CVT Pulley.
